PRODUCTS

vertical pump in square plate tank

Head: 0-19m
Voltage: 220V/380V
Material: PPH, PVDF
Flow rate: 0-440L/min
Pump Power: 1-3HP
Description

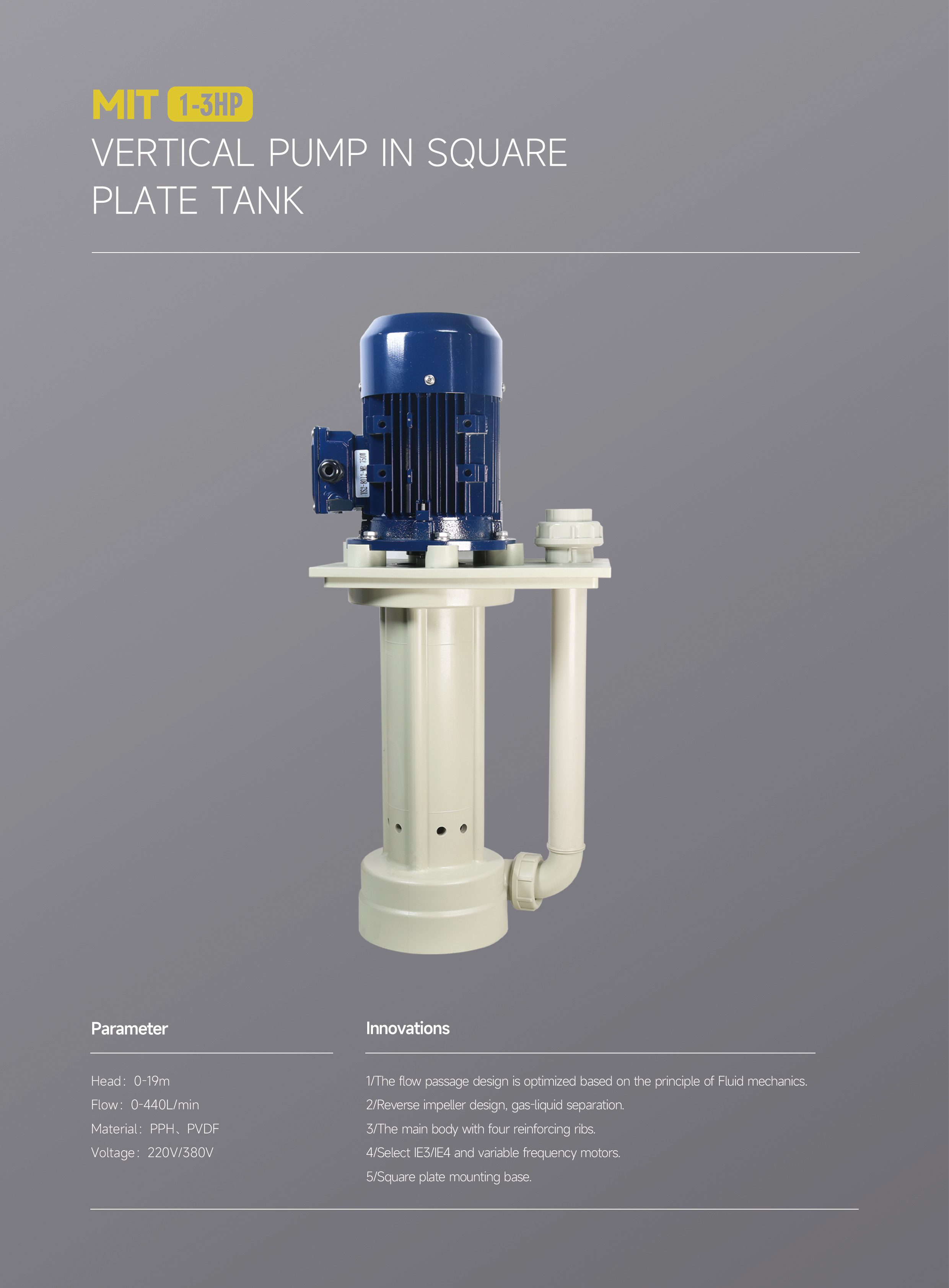

vertical pump in square plate tank(方板槽立式泵).jpg

Vertical pump in square plate tank

Model description

  MIT -40- VK -2-5- V - F - BT

  1- Model number: MIT, MITG

  2- Outlet diameter: 32:1-1/4 ", 40:1-1/2", 50:2“

  3- Specific gravity: VK: 1.1, VP: 1.4

  4- Horsepower: 1:1HP, 2:2HP, 3:3HP

  5- Frequency: 5-50Hz, 6-60Hz

  6- Rubber material: N-NBR, E-EPDM, V-VITON

  7- Pump material: F-GFRPP, C-CFRPPP, A-CPVC, P-PVDF

  8- Motor explosion-proof level: CT4 ExdIICT4, BT4 ExdIIBT4

Technical parameters

  Lift: 0-19m

  Flow rate: 0-440L/min

  Material: PPH, PVDF

  Voltage: 220V/380V

Five Innovations

  1. Optimize the flow channel design using fluid mechanics principles.

  2/Reverse impeller design, gas-liquid separation.

  3/The main body of the design with four reinforcing ribs.

  4/Select IE3/IE4 and variable frequency motors.

  5/Square plate mounting base.

Why Choose Us

FAQ
Q

What is your product range?

AWe mainly provide acid and alkali resistant self-priming pumps, acid and alkali resistant vertical pumps, acid and alkali resistant magnetic pumps, metering and dosing pumps, and pharmaceutical filters for more than 10 years. If you have other needs, such as sewage pumps, fluoroplastic pumps, stainless steel pumps, centrifugal pumps, and the pumps listed on our website. We have several partner manufacturers who can supply these pumps.
Q

Are you a manufacturer or a trading company?

AWe are a manufacturer of corrosion-resistant plastic pumps for a wide range of applications such as electroplating, coating, PCB circuit boards, etching, exhaust gases, sewage treatment, etc.
Q

What information should I provide when I need a quote from you?

A1. Pump capacity and total head (working pressure). 2. Liquid medium, medium temperature. 3. Motor: Voltage, frequency. 4. Other specifications the more the better.
Q

If I need these pumps urgently, can they be shipped by air?

AYes, of course we can ship by air. However, I must warn you that the shipping cost will be very expensive.
Q

Do you sell other brands of pumps? Do you accept OEM?

ANo, we do not sell other brands of pumps, but if our brand is suitable for you, you can send me the detailed specifications. We do not accept OEM.
Q

The specifications of our pumps are different from the ones you provide, can you customize them according to my data?

AYes, we can. Please send me your detailed specifications, and then we will select the right pump for you to quote.
